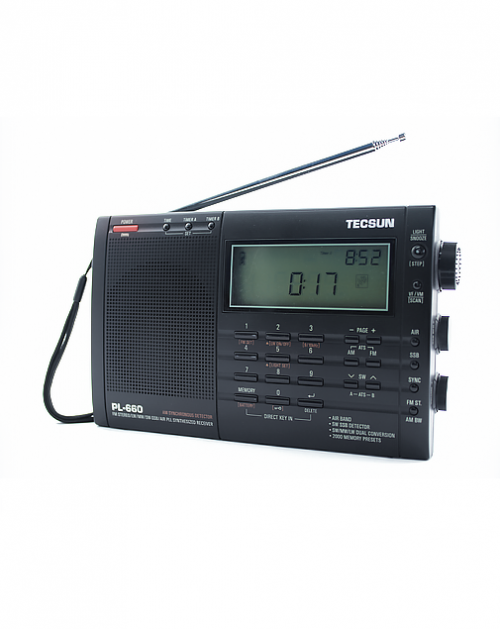

Tecsun PL660 Radio with VHF Air Band

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

$179.00

The Tecsun PL660 Radio with VHF Air Band is a great radio for communications enthusiasts with the radio providing excellent reception to all of the major frequency bands including AM/MW, FM, Shortwave with SSB, Longwave, and VHF Air Band.

7 in stock

Description

The Tecsun PL660 Radio with VHF Air Band is a great radio for communications enthusiasts, providing excellent reception of all major frequency bands including AM/MW, FM, Shortwave AM and SSB), Longwave, and VHF Air Band.

The Tecsun PL660 features phase lock looped (PLL) synthesised RF circuit design, direct frequency entry, and a large LCD display make this model one of the most sensitive and full-featured portable radios available on the Australian market.

The Tecsun PL660 Radio with VHF Air Band includes synchronous detection which means that during periods of propagation fading, the Tecsun PL660 Radio’s receiver stays locked to the incoming signal. Independently selectable upper side band (USB) and lower sideband (LSB) makes monitoring of HF utility stations such as HF aircraft, marine, Amateur radio, 4WD clubs, and outback communications simple and intuitive.

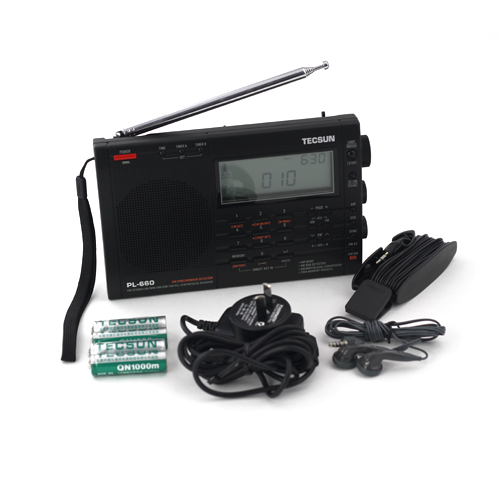

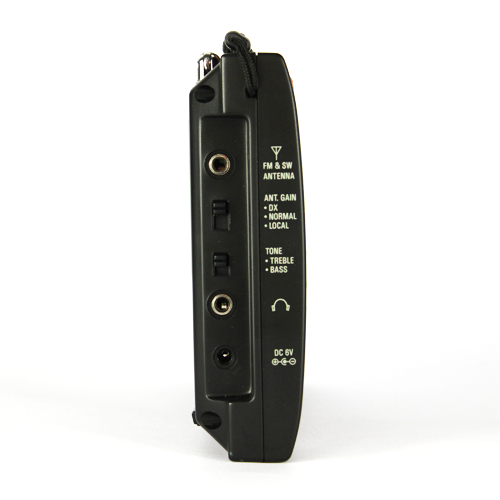

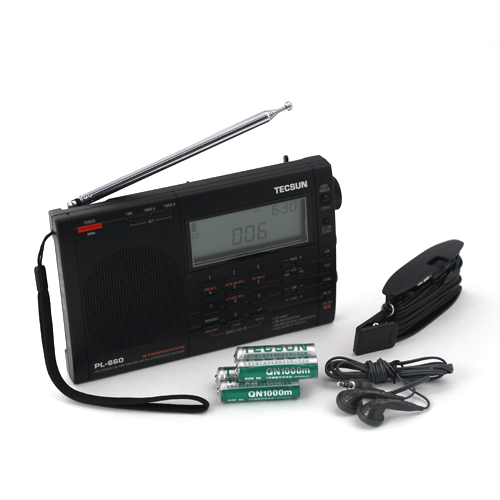

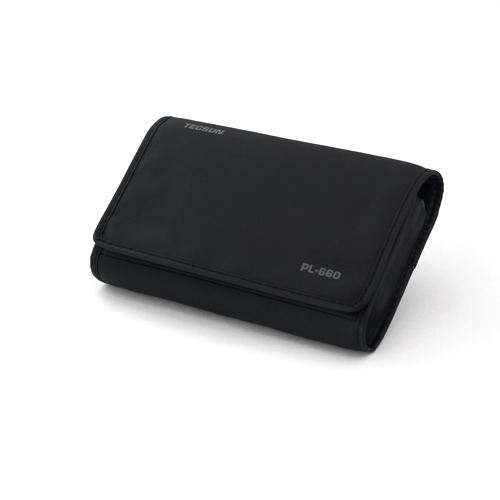

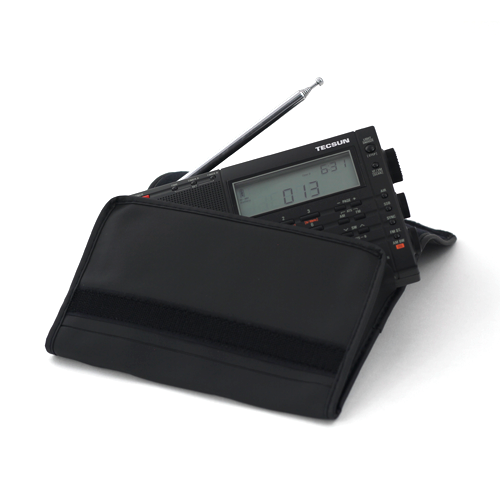

The Tecsun PL660 Radio with VHF Air Band has a socket for an external antenna connection (with antenna input attenuator to prevent overload), selectable IF bandwidth, and tone control, and is supplied with rechargeable NiMh batteries, an approved Australian pinned charger, earphones, a protective carry case, a 6m long wire antenna and a comprehensive user manual. Available in black only.

This radio is designed to be operated from batteries, not directly from the charger supplied. Even though the charger voltage is regulated, the internal switching circuitry generates RF noise which can interfere with reception, especially on AM and Shortwave bands.

Features

– Selectable Upper and Lower Side Band
– Selectable IF Bandwidth
– 3 level input attenuator
– Synchronous AM Detection
– Direct Frequency Entry
– External Antenna Socket
– Headphone Socket (Stereo)
– Large LCD Backlight
– Unit Size: 188(W) x 116(H) x 31(D) mm
– Frequency Range

Frequency Band Frequency Coverage Frequency Stepping
FM Band 76-108 MHz 0.01/0.1 MHz
AM Band (MW) 522 -1710 kHz 1/9 kHz
Shortwave (SW) 1711-29999 kHz 1/5 kHz
Longwave (LW) 100-522 kHz 1/9 kHz
VHF Air Band 118-137 MHz 1/25 kHz

Read Full Manual
Tips and Tricks for a Sight Impaired Person

Additional information

Weight 0.6 kg
Dimensions 29 x 16 x 8 cm

1 review for Tecsun PL660 Radio with VHF Air Band

  1. Rated 5 out of 5

    Dan H

    Great little setup, I’m from the USA and the 660 fits everything needed for a compact travel worthy Shortwave/CW/SSB/Air/AM/FM transceiver. I’ve now packed it on many trips MD get a decent use out of a set of Tecsuns Batteries (Available Separately) but you can use higher mAh batteries and the radio will still charge them just fine. I get a few days worth of use between charges and that was 8+ hours a day. The field antenna as well as the built in antenna draws signals in clear and strong, has a great DX filter switch, the ear buds are quality units and are comfortable and the carrying case keeps it clean and dry in the ruksack. The BFO tunes CW and Dab in great as well as the SYNC feature. If you want something between the powerhouse 880 and the lower end 600 the 660 is not to be overlooked.

    If I have one complaint about this radio, and it effects the entire line is when the keypad is locked a slight tap to the tuner or a button causes the display to light up. I had inadvertently stuffed my bag a bit full and had near dead batteries by the time I got to my destination due to the display light on the entire 14 hour journey. If the key lock prevented the light from coming on would be a big improvement.

    Newer models have the auto sort feature A well which is nice for eliminating duplicates and sorting your saved channels as well.

    Just a great little setup in a compact package.
