The PL365 connected to the AN100 Loop Antenna

The Tecsun PL365 is the only pocket-sized radio in the Tecsun range that offers an external antenna connection. It’s easy to use, portable and comes with a great list of features to make this pocket-radio perfect for the outdoors and for use as an emergency radio.

Extended AM coverage

The PL365 is configured so that when the user selects 9Khz channel spacing on the AM broadcast band (as used in Australia) the frequency coverage is set to 522 -1620 Khz. This means that when a user tunes across the AM broadcast band in Australia, the receiver increments in 9Khz steps, which conforms to the ACMA MW bandplan.

However, it is possible to select 10Khz channel spacing (used in the USA and Japan), and this changes the frequency range  to 520-1720Khz. By setting the receiver to 10Khz spacing ( With the radio off, press and hold the 9/10Khz button until 10Khz is displayed), it will be possible to tune the extra 1620-1710Khz segment. Those stations broadcasting in this band segment are known as Medium Frequency Narrowband Area Service (MF NAS) stations

Extended FM coverage

With the PL365 OFF, press and hold the FM button to select either 76-108Mhz or 88-108Mhz.

External antenna connection for the PL365

An external shortwave or AM broadcast antenna (including our AN 100 loop antenna) can be connected directly into the “MW antenna socket” to refine the tuning

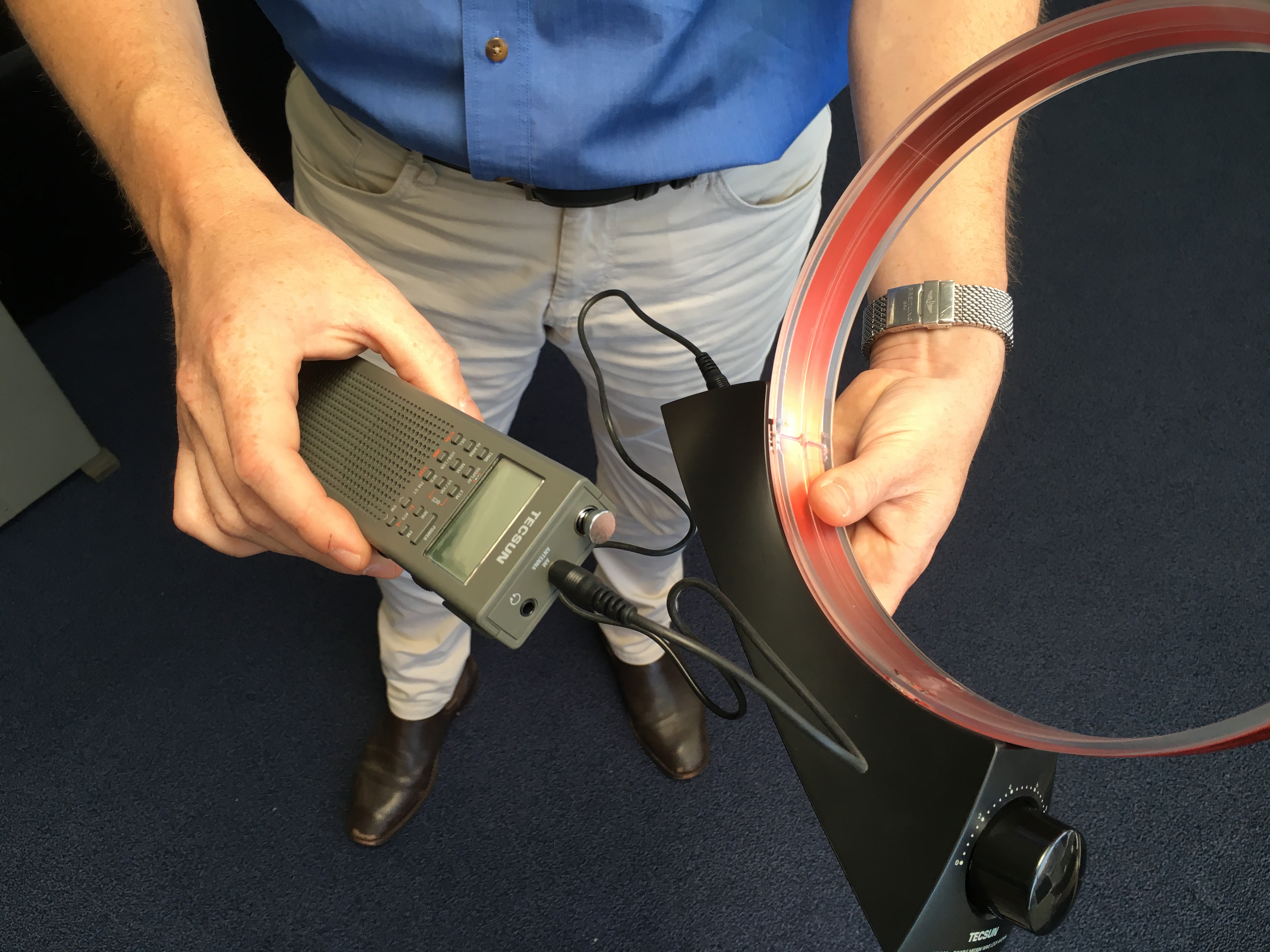

The PL365 connected to the AN100 Loop Antenna

The PL365 connected to the AN100 Loop Antenna

Rechargeable batteries

Whist the PL365 is not supplied with rechargeable batteries, it is possible to fit rechargeable Ni MH batteries and utilise the USB changing socket. The recommended Tecsun batteries are 1000mAh capacity. The PL365 has internal charging circuitry to cater for this. Tecsun Radios Australia can supply batteries, USB lead and charger, shown in the Tecsun website and catalogue under “accessories”.



Get your own PL365 here and find out what all the fuss is about!

Thanks to Garry VK2YBX for these great tips and tricks.

pl880

Radio reviewer Gary Ryan VK2ZKT has put together this great list of top tips for using the Tecsun AN100 Loop Antenna to help get the best AM reception with your radio.

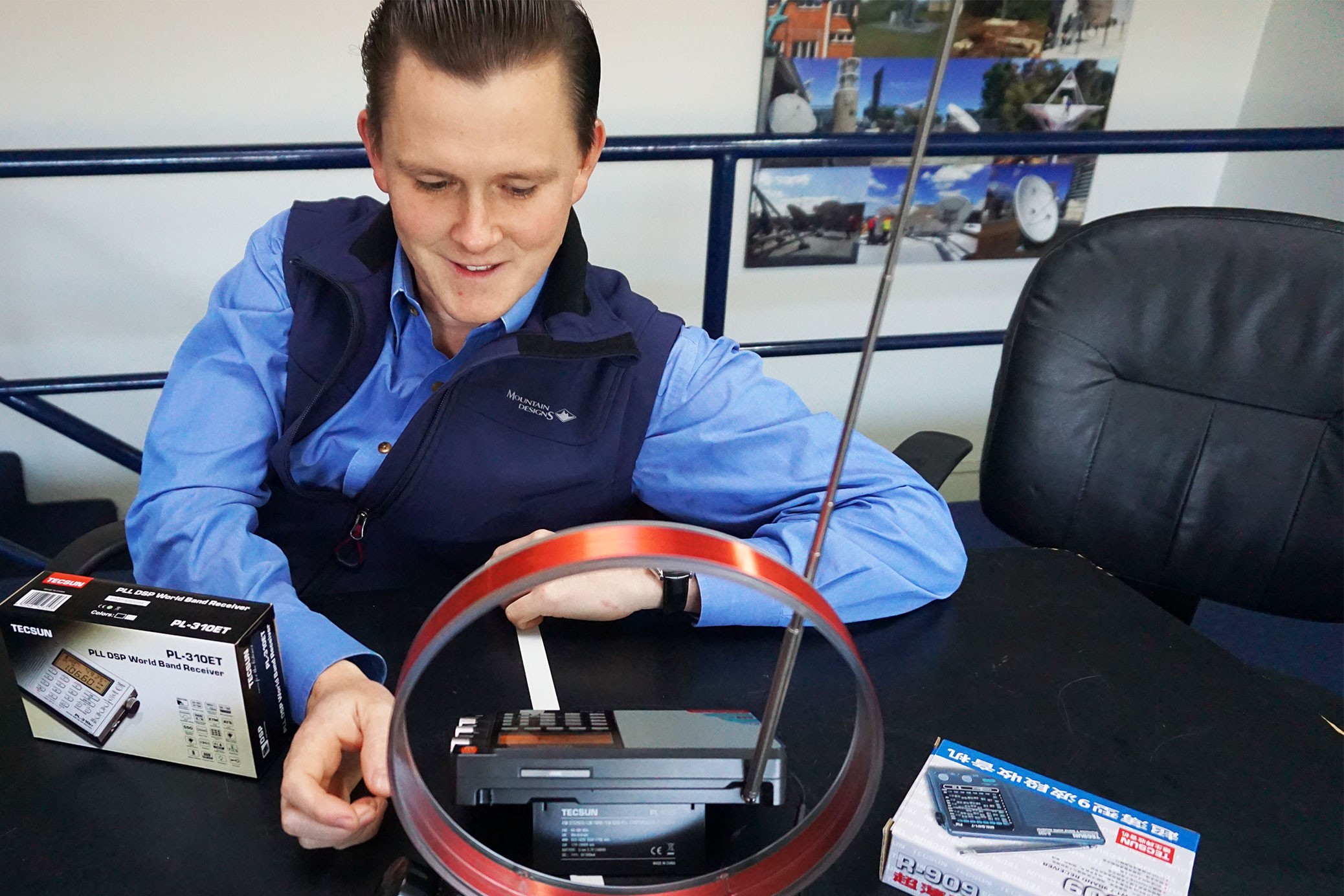

AN100 Loop Antenna being tuned with the PL880 Radio

AN100 Loop Antenna being tuned with the PL880 Radio

Tecsun AN100 Loop Antenna Top Tips by Gary Ryan:

  • Place the radio and loop outside the house if possible on your veranda or outdoor entertaining area.
  • If used inside always switch off all light dimmers.
  • Switch off energy saving lamps; these produce all kinds of noise.
  • Keep the loop as far as possible away from home entertainment systems like DVD players, LCD and Plasma TVs, set top boxes and the like, as the majority all use switch mode power supplies.
  • Start by keeping the loop as close as possible to the radio, within 30mm. The distance will vary, depending upon the size of the ferrite rod antenna inside your receiver, so determine the optimum distance by observing the signal strength.
  • Keep mobile phones away from the loop.
  • Place the radio for optimum signal by rotating it on a flat surface. Best reception should be obtained when the radio is facing 90 degrees from the direction of the transmitter.
  • First tune the receiver to the  frequency of interest, then tune the loop for best reception.
  • Try different locations in your home; remember you may have insulation that is backed with foil in your walls and or ceiling. This greatly attenuates the signals on the AM broadcast band.
  • Always rotate both the radio and loop to gain the best-received signal strength along with the best noise reduction.
  • Keep iPods and other MP3 players away from your radio and loop, the RF hash they generate even when switched off is huge.
AN100 Loop Antenna being tuned with the PL880 Radio

AN100 Loop Antenna being tuned with the PL880 Radio

Thanks to Gary Ryan VK2ZKT for this excellent list of top tips. Gary has also written a review of the AN100 Loop Antenna. Read his review here: AN100 Loop Antenna Review

Radio Reviewer Gary Ryan VK2ZKT wrote a AN100 Loop Antenna review

Here are just a few of the things he had to say in his AN100 Loop Antenna review

“Being a keen AM Broadcast Band listener the opportunity to purchase a loop antenna for AM reception cannot be overlooked.”

“The AN100 Loop Antenna … looks like a piece of artwork … the finish is first grade.”

“By far the best performance was with the loop”

“The AN100 Loop Antenna is a pleasure to use”

“Excellent value and makes a big difference to your listening pleasure to AM radio.”

Read the full AN100 Loop Antenna Review by Gary Ryan VK2ZKT

Being a keen AM Broadcast Band listener the opportunity to purchase the Tecsun AN100 loop antenna for AM reception cannot be overlooked.

I recently purchased the Tecsun AN100 Loop Antenna from Sydney-based Tecsun Radios Australia. The Tecsun loop, unlike other loop antennas on the market, actually works so well and also looks like a piece of artwork. This is important if you want to use the loop in your lounge room or kitchen table. The finish is first grade. The antenna is self-supporting and only has one control, a simple calibrated tuning knob to cover the broadcast band.

What’s in the box?

You get the AN100 loop antenna, interconnecting cable for receivers with external antenna connection and a single sheet of comprehensive yet simple to understand instructions. The instructions are actually quite good and describe the operation of the loop, suggested mounting arrangements and some basic information on AM reception. It should be noted that the loop antenna is designed for the AM Broadcast band only.

AN100 Loop Antenna Review

AN100 Loop Antenna being tuned with the PL880 Radio

Performance and use

The performance was checked during the day and night. First I checked the frequency coverage of the loop. To do this I used my RF Dip Meter and Frequency counter. Frequency coverage was measured at 515 KHz to 1.85 Mhz. Tuning was smooth and quite stable once a frequency was tuned.

I set the loop up to sit at a right angle to my radio and checked out the performance during daylight hours on a number of local stations. The loop made a considerable difference and improved the signal to noise ratio of the received signal. Tuning across the band in between the stations and peaking the “loop tuning control” peaked the reception across the band.

Next night time performance was checked. The performance at night was excellent with the ability to both peak and null out stations allowing the best possible reception available. By far the best performance was with the AN100 loop antenna as shown in the photo below.

AN100 Loop Antenna Review

Best AN100 Loop Antenna configuration with the PL880 radio

Conclusion

I found the AN100 Loop Antenna a pleasure to use. It does not look out of place in the lounge room and I am sure it will be a talking point amongst your friends when they come over. The price is excellent value and makes a big difference to your listening pleasure to AM radio both day and night.

It is also nice to see a local family business importing products like these for the enjoyment of everyone and to enhance their AM reception experience. Plus you get to talk to and have access to local knowledge and support as well. The loop antenna is available from Tecsun Radios Australia.

Thanks to Gary Ryan VK2ZKT for the excellent AN100 Loop Antenna Review. Read Gary’s AN100 Loop Antenna Top Tips here!

AN100 Loop Antenna Review

Michael and Garry DXing with the AN100 Loop Antenna

AN100 Loop Antenna Review

Michael and Garry DXing with the AN100 Loop Antenna
