Radio Reviewer Gary Ryan VK2ZKT wrote a AN100 Loop Antenna review

Here are just a few of the things he had to say in his AN100 Loop Antenna review

“Being a keen AM Broadcast Band listener the opportunity to purchase a loop antenna for AM reception cannot be overlooked.”

“The AN100 Loop Antenna … looks like a piece of artwork … the finish is first grade.”

“By far the best performance was with the loop”

“The AN100 Loop Antenna is a pleasure to use”

“Excellent value and makes a big difference to your listening pleasure to AM radio.”

Read the full AN100 Loop Antenna Review by Gary Ryan VK2ZKT

Being a keen AM Broadcast Band listener the opportunity to purchase the Tecsun AN100 loop antenna for AM reception cannot be overlooked.

I recently purchased the Tecsun AN100 Loop Antenna from Sydney-based Tecsun Radios Australia. The Tecsun loop, unlike other loop antennas on the market, actually works so well and also looks like a piece of artwork. This is important if you want to use the loop in your lounge room or kitchen table. The finish is first grade. The antenna is self-supporting and only has one control, a simple calibrated tuning knob to cover the broadcast band.

What’s in the box?

You get the AN100 loop antenna, interconnecting cable for receivers with external antenna connection and a single sheet of comprehensive yet simple to understand instructions. The instructions are actually quite good and describe the operation of the loop, suggested mounting arrangements and some basic information on AM reception. It should be noted that the loop antenna is designed for the AM Broadcast band only.

AN100 Loop Antenna Review

AN100 Loop Antenna being tuned with the PL880 Radio

Performance and use

The performance was checked during the day and night. First I checked the frequency coverage of the loop. To do this I used my RF Dip Meter and Frequency counter. Frequency coverage was measured at 515 KHz to 1.85 Mhz. Tuning was smooth and quite stable once a frequency was tuned.

I set the loop up to sit at a right angle to my radio and checked out the performance during daylight hours on a number of local stations. The loop made a considerable difference and improved the signal to noise ratio of the received signal. Tuning across the band in between the stations and peaking the “loop tuning control” peaked the reception across the band.

Next night time performance was checked. The performance at night was excellent with the ability to both peak and null out stations allowing the best possible reception available. By far the best performance was with the AN100 loop antenna as shown in the photo below.

AN100 Loop Antenna Review

Best AN100 Loop Antenna configuration with the PL880 radio

Conclusion

I found the AN100 Loop Antenna a pleasure to use. It does not look out of place in the lounge room and I am sure it will be a talking point amongst your friends when they come over. The price is excellent value and makes a big difference to your listening pleasure to AM radio both day and night.

It is also nice to see a local family business importing products like these for the enjoyment of everyone and to enhance their AM reception experience. Plus you get to talk to and have access to local knowledge and support as well. The loop antenna is available from Tecsun Radios Australia.

Thanks to Gary Ryan VK2ZKT for the excellent AN100 Loop Antenna Review. Read Gary’s AN100 Loop Antenna Top Tips here!

AN100 Loop Antenna Review

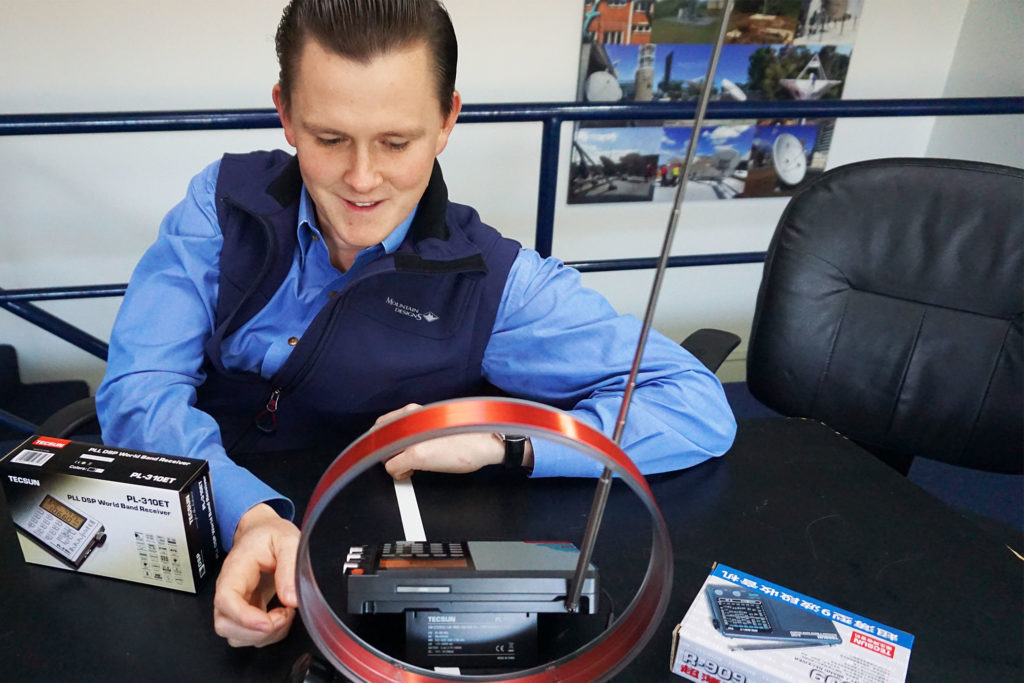

Michael and Garry DXing with the AN100 Loop Antenna

AN100 Loop Antenna Review

Michael and Garry DXing with the AN100 Loop Antenna

2 replies
  1. Jen Cluse
    Jen Cluse says:

    Having a friend in a Rx black-spot behind a volcanic ridge, and having no radios capable of pulling in 4QR just 100km away, I was about to wind her a loop AE – if & when I got the time. The frames are tricky.

    And now, looking for a Rx with remote for my 99 yr-old mater, I stumbled over this elegant device.

    Looks like an order is pending.

    Its like old times, when performance was king, not looks, but here we have both.

    Well done,

    Jen of BNE
    Rad tech in the valve era 😀
